In this tutorial you will be able to take your flat package designs and mock them up in 3-D view using Adobe Illustrator. This is a pretty easy tutorial. This is something I learned at work since we always create mock-up images for our clients to view. It’s useful because it gives the client an idea of how the actual package will look like instead of sending them a flat file from Illustrator. Our clients don’t physically come in to see the designs so we email them images like this. This is good for people who want to show their package designs in their portfolio or mock them up in 3-D to show to your clients and what not. There are a number of uses for this. Of course, there is always the option of printing your design out and physically mock up the package design.
NOTE: I know, Toilette is spelled incorrectly. Too lazy to go back and recreate the tutorial.
STEP 1

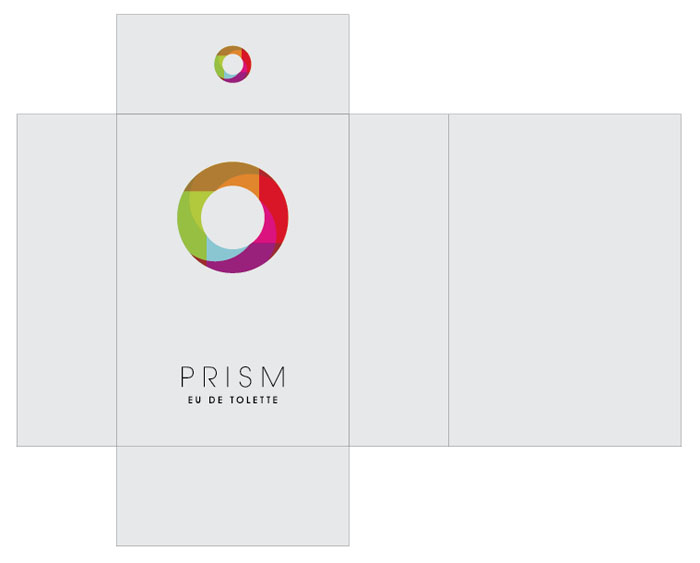

First off design your package. Here you can see I have a simple 6-sided rectangular box.

STEP 2

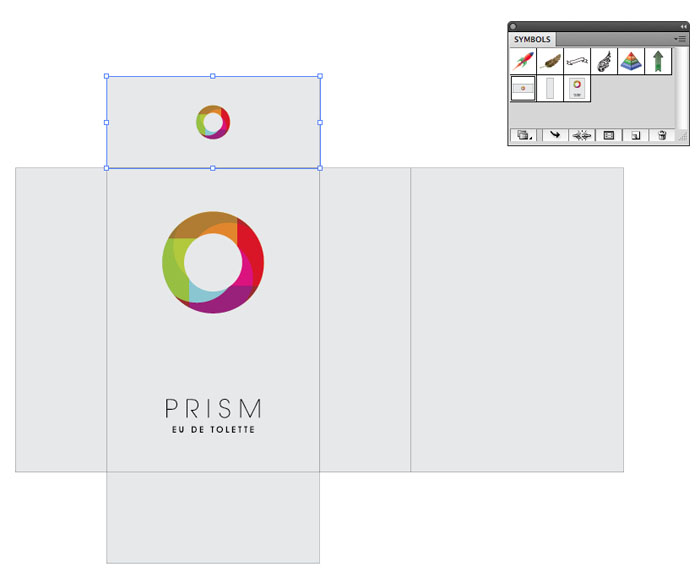

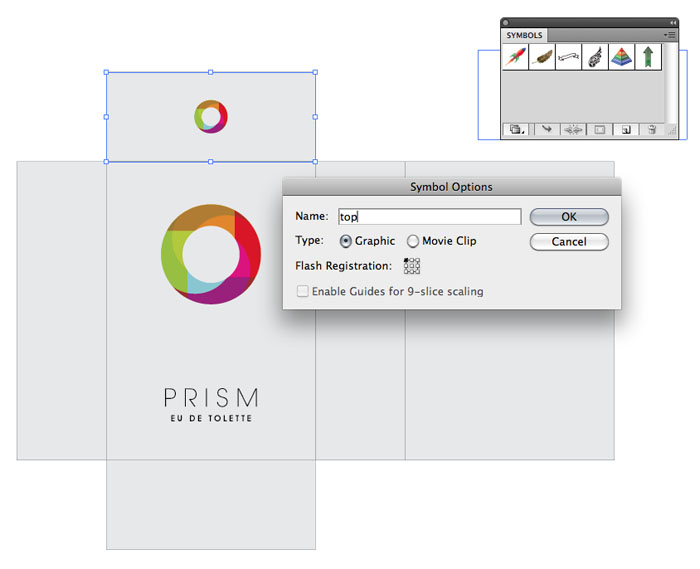

Pull up your Symbols window (Window>Symbol). Now select the top panel and drag it into the Symbols window. A dialogue will pop up. Name it as “TOP” and click on “Graphic” as the type.


STEP 3

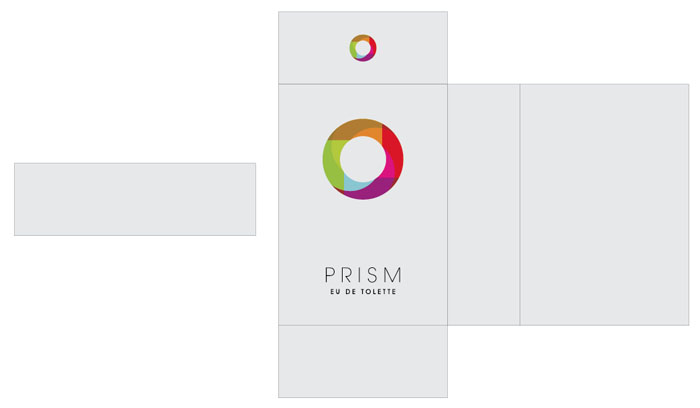

Do the same for the side panel. But before dragging it into the Symbol window, rotate it 90 degrees. Drag it to the Symbols window like the step before and name it, “Side” and make sure the type is “Graphic”.

STEP 4

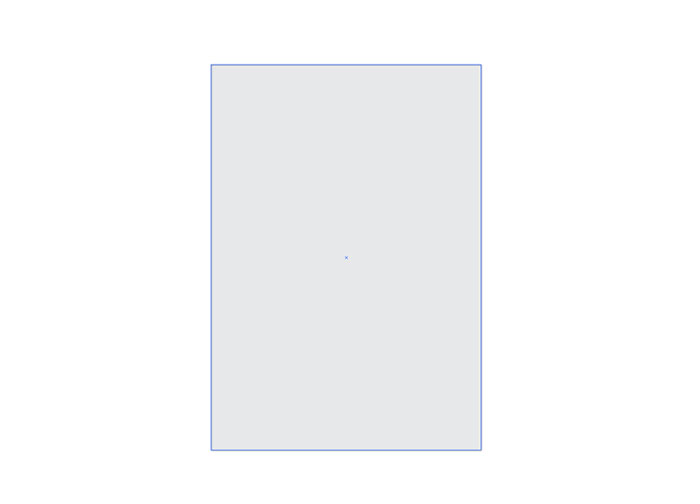

Next, make a rectangle with the same dimensions (or same aspect ratio) to the front panel of your package design.

STEP 5

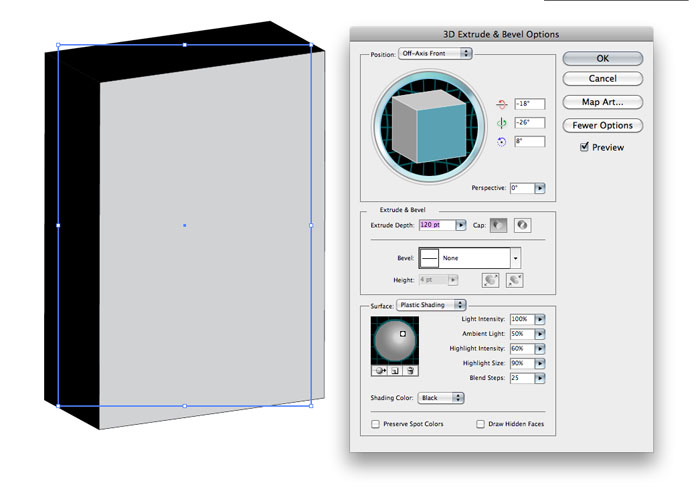

Now pull up the Extrude & Bevel window by going to 3D>Effect>Extrude & Bevel.

STEP 6

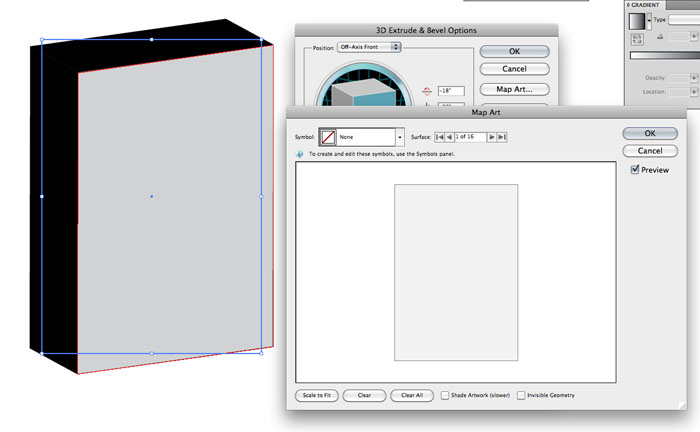

Click on “Map Art” and a window will pop up. You will see that the front panel is now highlighted with a red line/stroke.

STEP 7

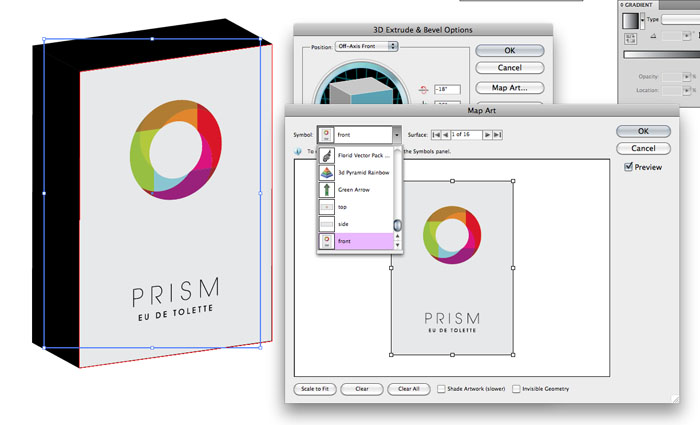

From the Symbols drop down panel, select your Front symbol. It should be towards the bottom. If necessary, click Scale to Fit.

STEP 8

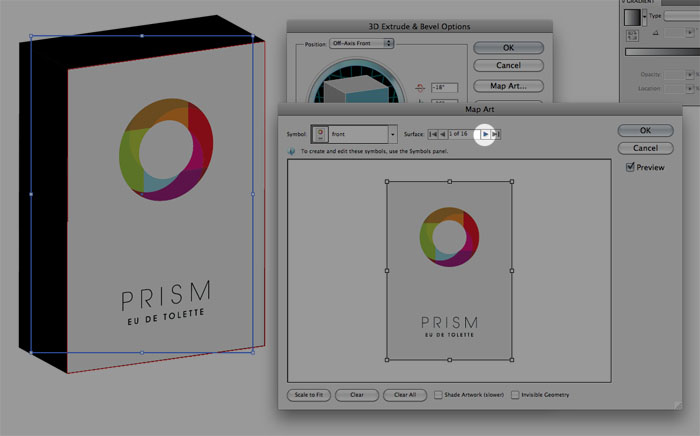

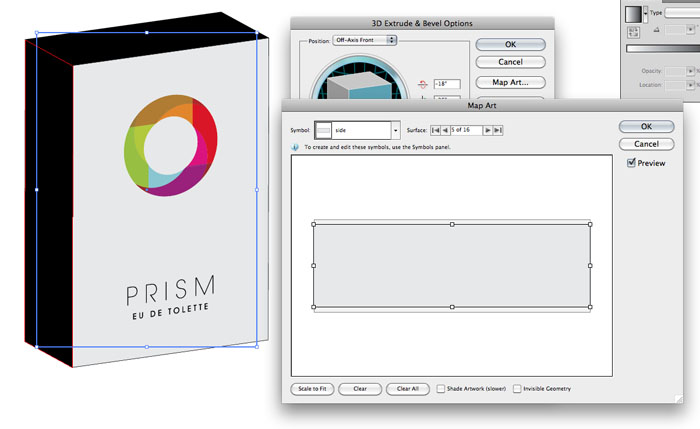

Click the “next” arrow in the Map Art dialogue till you see the side panel get highlighted in red and do the same thing you did for the front except use the “Side” symbol.


STEP 9

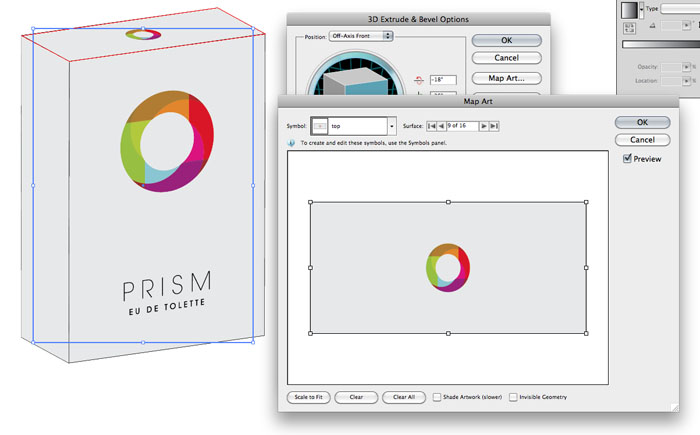

Do the same for the top.

STEP 10

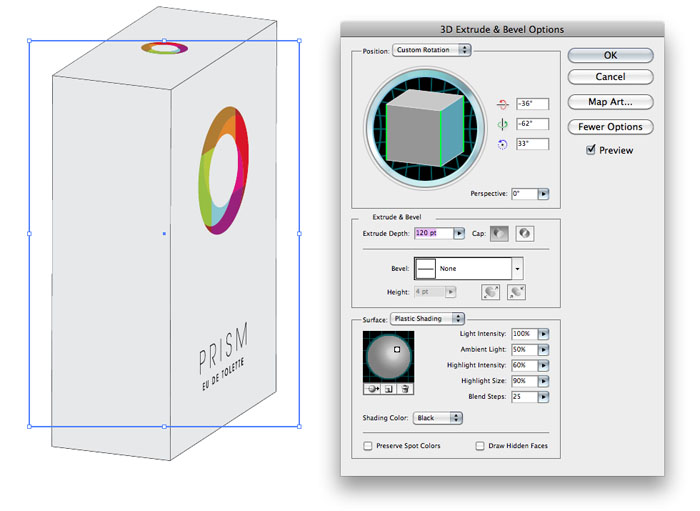

You are now done. If the panels aren’t to the right proportions you can modify the Extrude Depth settings. After you do that you have to go through the Map Art again and redo “Scale to fit” on the respective panels. It takes some tweaking and tinkering with to get it good or even perfect. Here you can rotate it to your liking and add perspective if you want. Just keep playing around with it.

Note: If you designed a package in Photoshop you are not out of luck. Simply create PNGs of the respective panels and bring them into Illustrator and drag those PNGs into the symbols window.
Again, if you designed a complex design in Illustrator where you couldn’t simply drag the panels to the Symbols window just export the entire file as a psd, jpg or png. Then open it up in Photoshop and create PNGs of the panels there.
